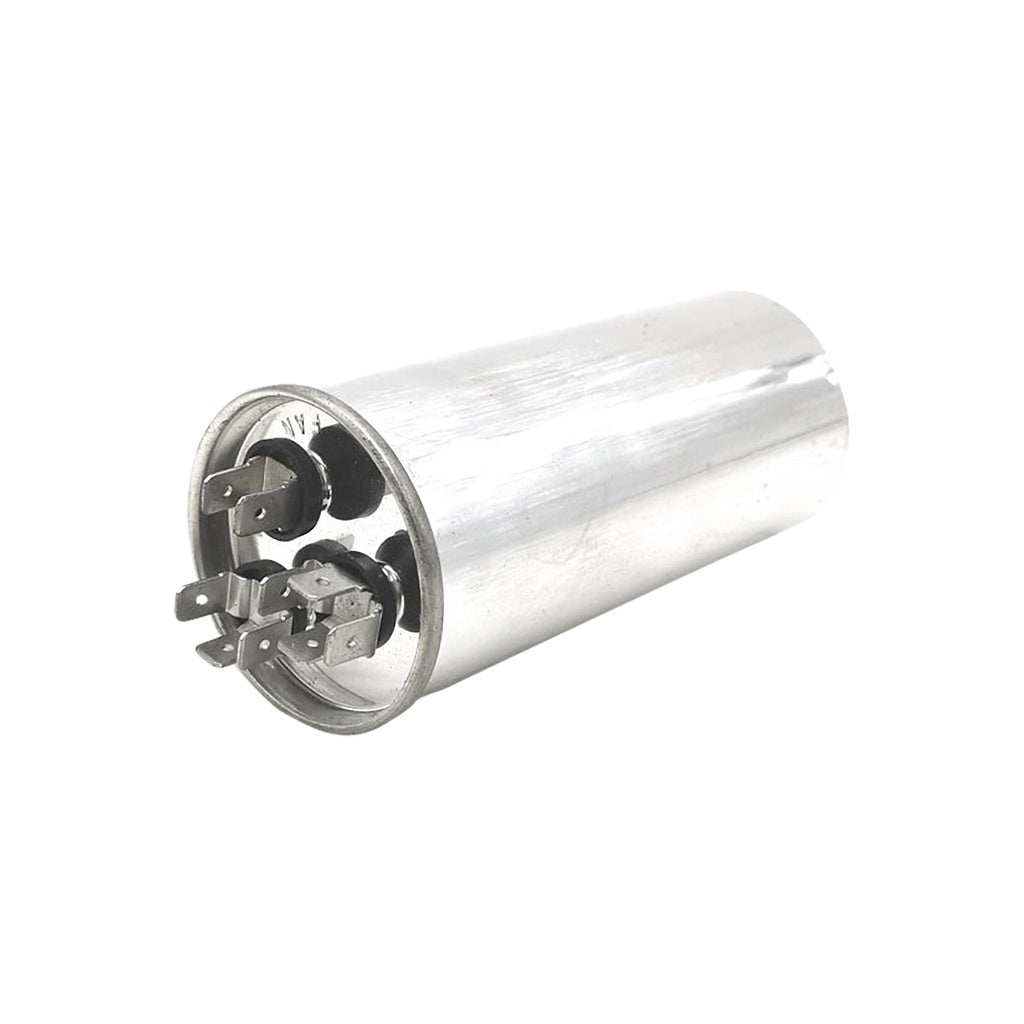

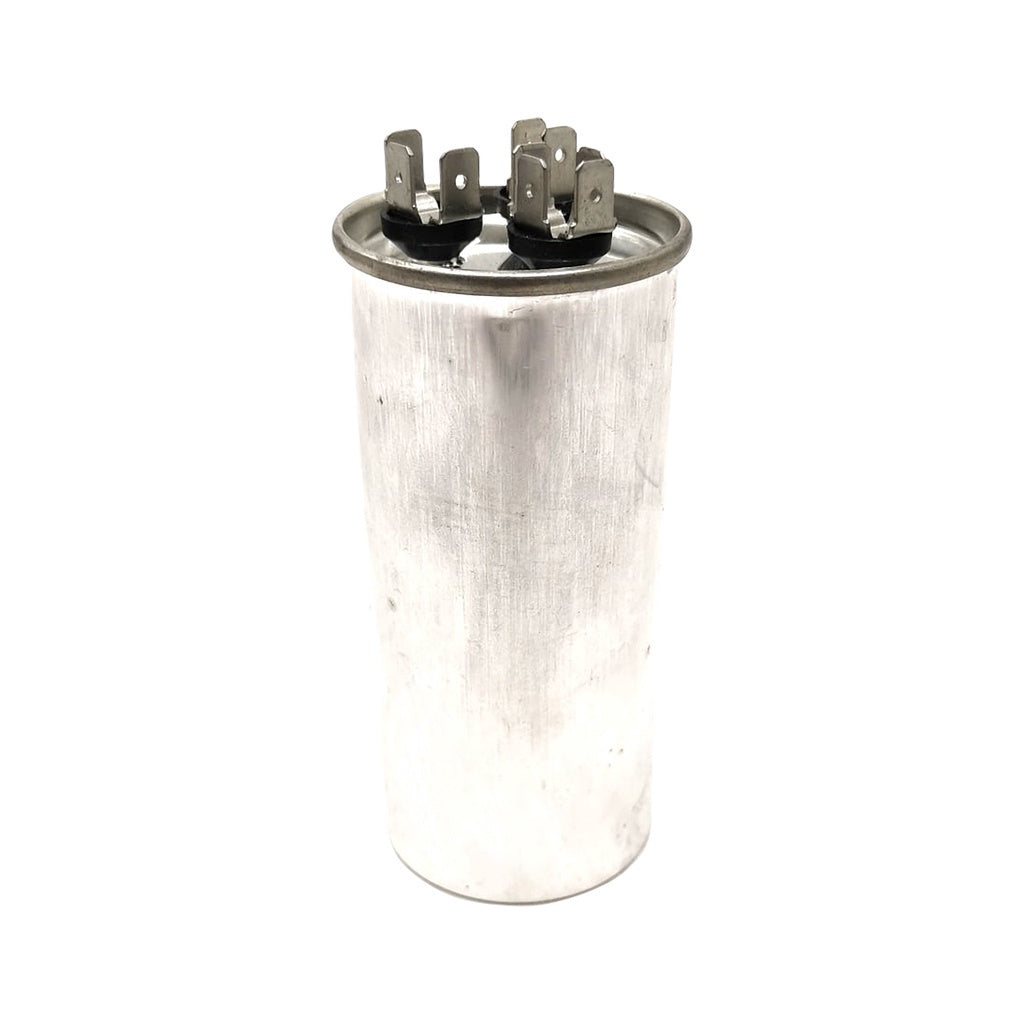

Electriq CBB65 Dual Run Capacitor 450VAC Aluminum for Aircon, Lighting, Motor & Pump
Search Items
Request Quote
Place an Order
Key Features:
- CBB65 dual run capacitor for motors and air conditioning systems
- Dual capacitance design (fan + compressor support)
- Rated at 450VAC for stable and reliable performance
- Durable aluminum casing for heat resistance and protection
- Wide range of capacitance options available
- ±5% capacitance tolerance for accuracy
- Operates in extreme temperatures (-40°C to 90°C)
- Suitable for aircon, pumps, compressors, motors, and lighting systems

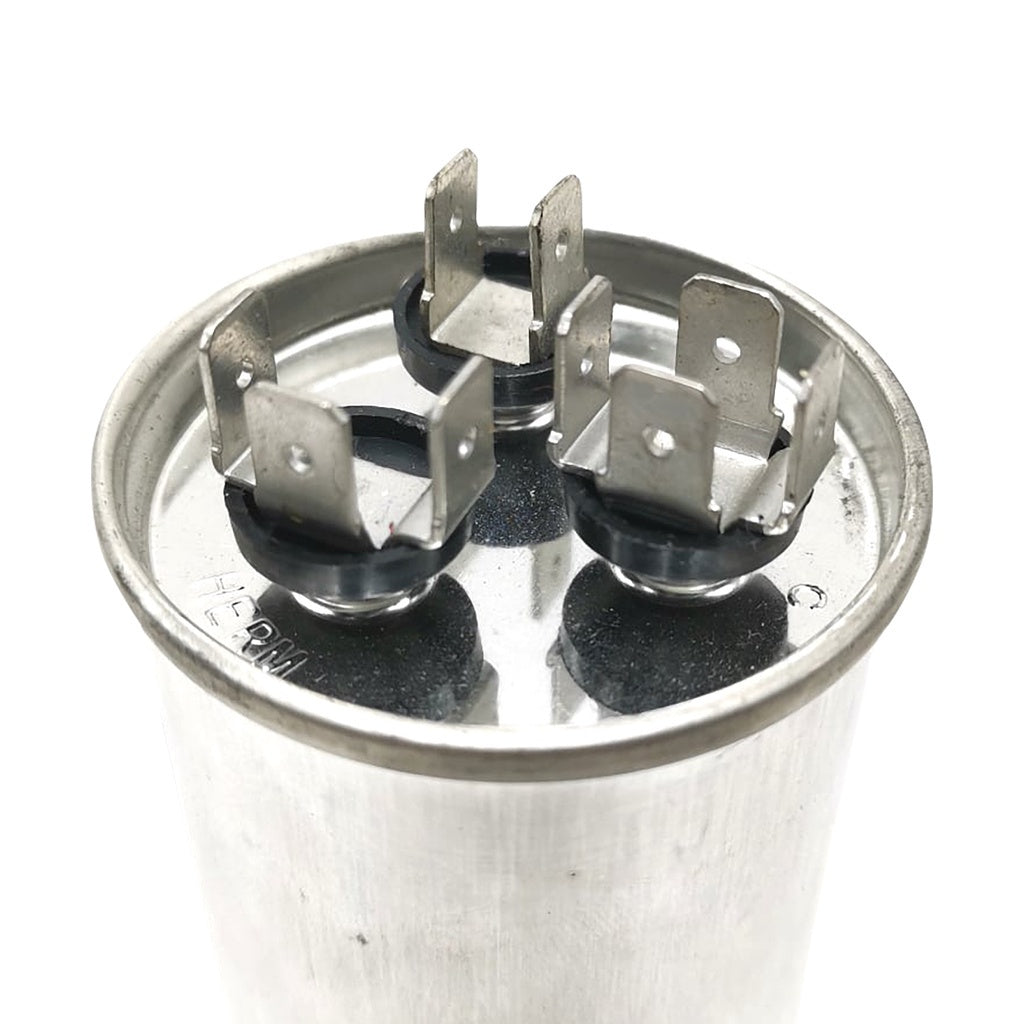

- Available with 2, 3, or 4 pin terminals
Specifications:
- Model: CBB65 (Dual Capacitor)
- Rated Voltage: 450VAC
- Frequency: 50/60Hz
- Capacitance Tolerance: ±5%
- Operating Temperature: -40°C to 90°C
- Material: Aluminum Case
MODEL:
CBB65-15+1.5 | Dimension : 4.8cm x 4.8cm x 8.8cm
CBB65-15+2 | Dimension : 4.8cm x 4.8cm x 9.3cm
CBB65-15+3 | Dimension : 4.8cm x 4.8cm x 9.8cm
CBB65-17+1.5 | Dimension : 4.8cm x 4.8cm x 9cm
CBB65-17+2 | Dimension : 4.8cm x 4.8cm x 9.8cm
CBB65-17+3 | Dimension : 4.8cm x 4.8cm x 8.8cm
CBB65-17+4 | Dimension : 4.8cm x 4.8cm x 9cm
CBB65-20+1.5 | Dimension : 4.8cm x 4.8cm x 8.8cm
CBB65-20+2 | Dimension : 4.8cm x 4.8cm x 10.4cm
CBB65-20+3 | Dimension : 4.8cm x 4.8cm x 7.7cm
CBB65-20+4 | Dimension : 4.8cm x 4.8cm x 10.3cm
CBB65-20+5 | Dimension : 4.8cm x 4.8cm x 8.9cm
CBB65-25+1.5 | Dimension : 4.8cm x 4.8cm x 10cm
CBB65-25+2 | Dimension : 4.8cm x 4.8cm x 10.3cm
CBB65-25+3 | Dimension : 4.8cm x 4.8cm x 10.1cm
CBB65-25+4 | Dimension : 4.8cm x 4.8cm x 10.2cm
CBB65-25+5 | Dimension : 4.8cm x 4.8cm x 10cm
CBB65-30+1.5 | Dimension : 4.8cm x 4.8cm x 10.2cm
CBB65-30+2 | Dimension : 4.8cm x 4.8cm x 10.2cm
CBB65-30+3 | Dimension : 4.8cm x 4.8cm x 10.2cm
CBB65-30+4 | Dimension : 4.8cm x 4.8cm x 10.2cm
CBB65-30+5 | Dimension : 4.8cm x 4.8cm x 10.2cm
CBB65-30+6 | Dimension : 4.8cm x 4.8cm x 10.3cm
CBB65-30+7 | Dimension : 4.8cm x 4.8cm x 10.3cm
CBB65-30+7.5 | Dimension : 4.8cm x 4.8cm x10.3cm
CBB65-35+2 | Dimension : 4.8cm x 4.8cm x 11.1cm
CBB65-35+3 | Dimension : 4.8cm x 4.8cm x 12.2cm
CBB65-35+4 | Dimension : 4.8cm x 4.8cm x 12.3cm
CBB65-35+5 | Dimension : 4.8cm x 4.8cm x 12.3cm
CBB65-35+7 | Dimension : 4.8cm x 4.8cm x 12.3cm
CBB65-40+6 | Dimension : 4.8cm x 4.8cm x 12.3cm
CBB65-40+7 | Dimension : 4.8cm x 4.8cm x 12.3cm
CBB65-45+2 | Dimension : 4.8cm x 4.8cm x 12.7cm
CBB65-50+2 | Dimension : 4.8cm x 4.8cm x 13cm
CBB65-50+6 | Dimension : 4.8cm x 4.8cm x 13.2cm
CBB65-50+7 | Dimension : 4.8cm x 4.8cm x 13.2cm
CBB65-50+7.5 | Dimension : 4.8cm x 4.8cm x 13.3cm
CBB65-55+5 | Dimension : 4.8cm x 4.8cm x 13.1cm
CBB65-55+6 | Dimension : 4.8cm x 4.8cm x 12.5cm
CBB65-60+5 | Dimension : 4.8cm x 4.8cm x 14.2cm
CBB65-60+6 | Dimension : 4.8cm x 4.8cm x 14.2cm
CBB65-60+7 | Dimension : 4.8cm x 4.8cm x 14.2cm
