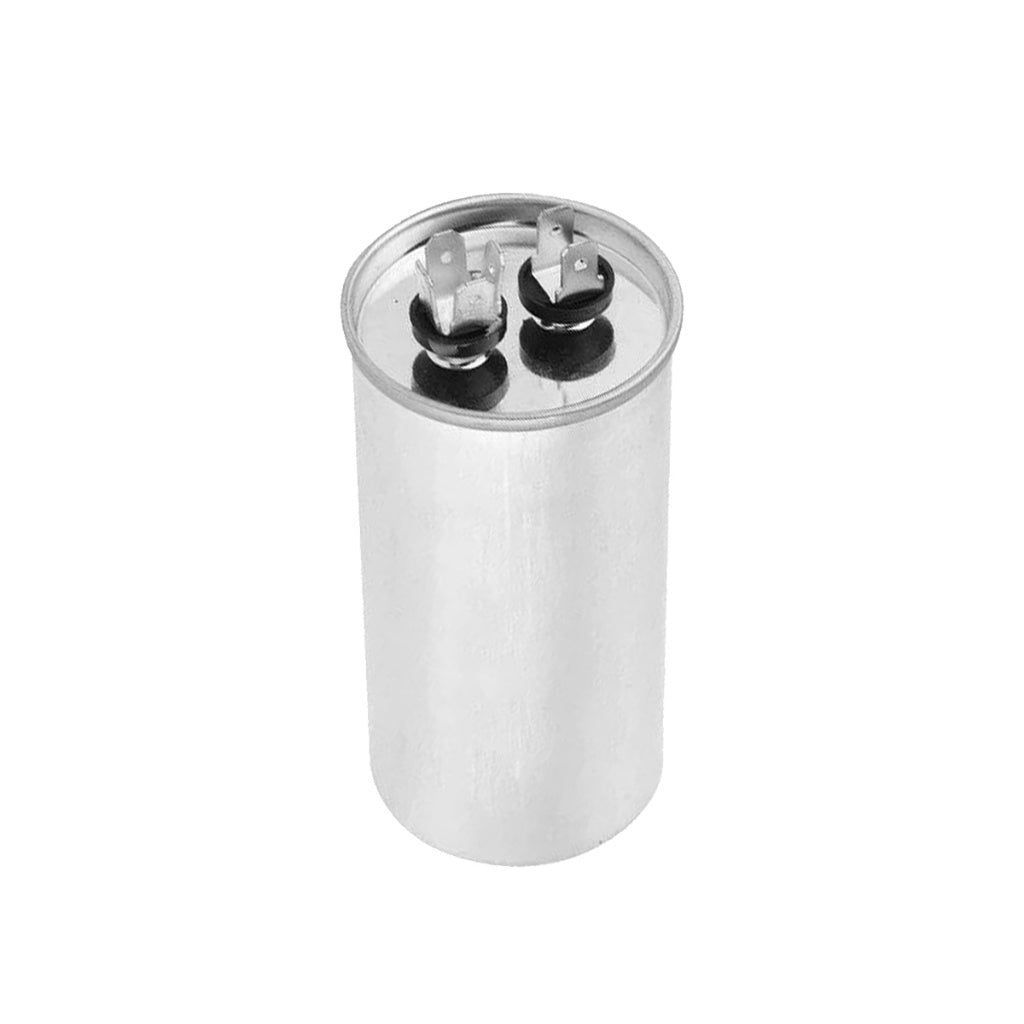

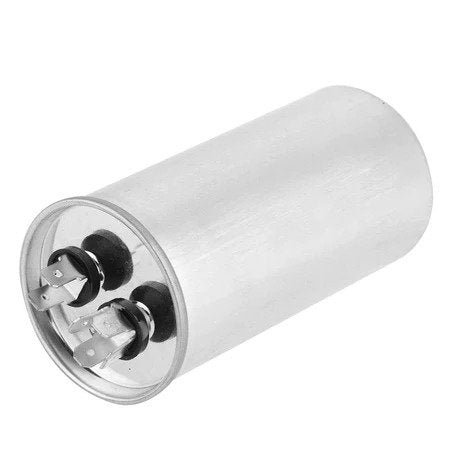

Electriq CBB65 Single Run Capacitor 450VAC Aluminum for Motor, Lighting, Pump & Aircon

CAPACITOR CBB65 Single Aluminum 450VAC Rated Motor Run Round Capacitor for Electric Motor, Pumps, Air Con, Aircon, Compressor, Lighting, and General purpose AC applications

Built with a durable aluminum casing and high-quality internal components, it offers excellent heat resistance and long service life. With a wide range of capacitance values from 1.5µF up to 100µF, this capacitor is ideal for various appliance requirements and repair needs.

Key Features:

• CBB65 single run capacitor for AC applications
• Wide capacitance range from 1.5µF to 100µF
• Rated at 450VAC for stable and reliable performance
• Durable aluminum casing for heat resistance
• ±5% capacitance tolerance for accuracy
• Supports motors, aircon, pumps, compressors, and lighting
• Operates in extreme temperatures (-40°C to 90°C)

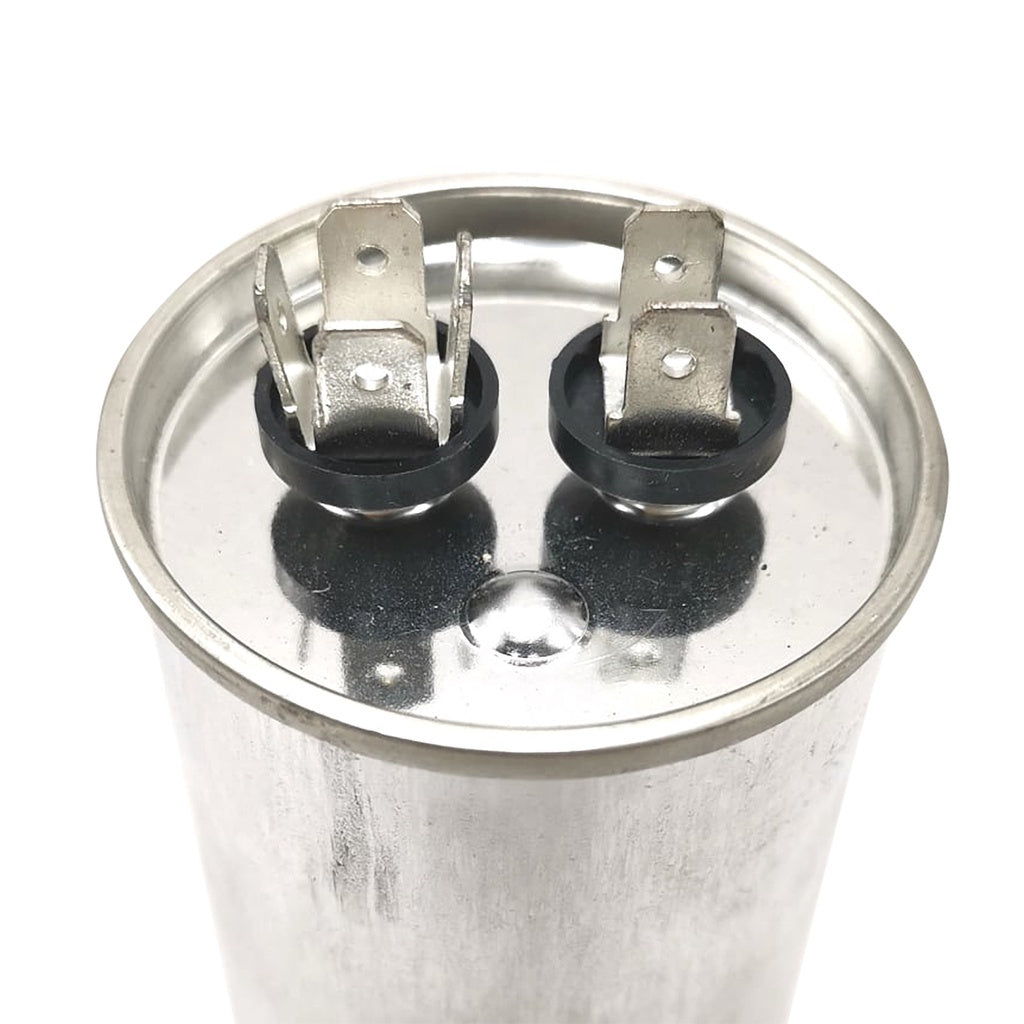

• Available with 2-pin and 4-pin terminals
• Long-lasting and reliable replacement part

Specifications:

• Model: CBB65 (Single Capacitor)
• Rated Voltage: 450VAC
• Frequency: 50/60Hz
• Capacitance Tolerance: ±5%
• Operating Temperature: -40°C to 90°C
• Material: Aluminum Case

Available Capacitance & Dimensions:

• 1.5µF – 4.0cm x 6.0cm
• 2µF – 4.0cm x 6.0cm
• 2.5µF – 4.0cm x 6.0cm
• 3µF – 4.0cm x 6.0cm
• 3.5µF – 4.0cm x 6.0cm
• 4µF – 4.0cm x 6.0cm
• 5µF – 4.0cm x 6.0cm
• 6µF – 4.0cm x 6.0cm
• 7µF – 4.0cm x 6.0cm
• 7.5µF – 4.0cm x 6.0cm
• 8µF – 4.0cm x 6.0cm
• 10µF – 4.0cm x 7.0cm
• 12µF – 4.0cm x 7.0cm
• 15µF – 4.5cm x 8.0cm
• 17µF – 5.0cm x 8.0cm
• 20µF – 5.0cm x 8.0cm
• 25µF – 5.0cm x 8.0cm
• 30µF – 5.0cm x 9.0cm
• 35µF – 5.0cm x 10.0cm
• 40µF – 5.0cm x 10.0cm
• 45µF – 5.0cm x 10.0cm
• 50µF – 5.0cm x 12.0cm
• 55µF – 5.0cm x 12.0cm
• 60µF – 5.0cm x 12.0cm
• 65µF – 5.0cm x 12.0cm
• 70µF – 5.0cm x 12.0cm
• 80µF – 5.0cm x 13.0cm
• 100µF – 5.0cm x 13.0cm
